Hall Current Sensor HDC-600N

Print Friendly, PDF & Email

For the electronic measurement of currents: DC, AC, pulsed, mixed, with a galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit).

Related Pages:

Electrical Data

TYPE
HDC-
100N
HDC-
200N
HDC-
300N
HDC-
400N
HDC-
500N
HDC-
600N
parameter
sign
Primary nominal r.m.s. current
IPN
100A
200A
300A
400A
500A
600A
Primary current measuring range
IP
0～±300A
0～±600A
0～±800A
0～±800A
0～±900A
0～
±900A
Secondary nominal
RMS voltage
VSN
4V±1% at IPN   (RL  =10 kΩ)
Supply voltage
VC
±15V DC ±5%
Zero offset voltage@IPN =0,
TA = 25°C
V0
within±30mV
Thermal drift of offset
voltage@IPN =0
VOT
within±1mV/°C
Linearity of VSN at IPN =F.S
εL
±1% of VSN  at IPN  =F.S
Response time
Tr
7μs max
R.m.s. voltage for AC isolation test
Vd
2.5KV/50 or 60Hz/1min
Ambient operating temperature
Ta
-10～+80°C  E:-40～+85°C
Ambient storage temperature
Ts
-15～+85°C   E:-45～+105°C

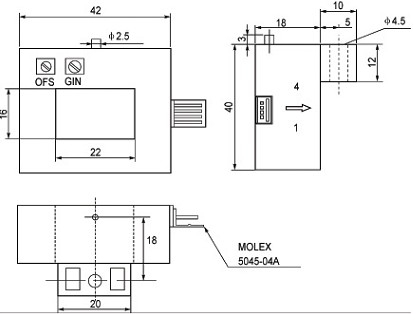

Dimension(mm)

Features

  1. Opened loop (compensated) multirange current sensor using the Hall effect
  2. Flexible way of installment
  3. Low power consumption
  4. No insert losses

Applications

  1. AC variable speed drives and serve motor drives
  2. Uninterruptible Power Supplies (UPS)
  3. Battery supplied applications
  4. Power supplies for welding applications.

Pin Identification

1：+15V
2：-15V
3：Output
4：0V
GIN：range injustment
OFS：Zero injustment
